Can be sterillized
Airtight metal tube caps for microfluidics
- Best Seller
P-CAP series
A complete set of easy-to-use and refillable microfluidic reservoirs for long-term experiments. Compatible with multiple pressure-based experiments in parallel, the metal tube caps allow pressurization of standard lab vials (1.5 mL and 2 mL Eppendorf, 15 mL and 50 mL Falcon) for microfluidic applications. The P-CAPs are compatible with all of our pressure-based flow controllers.
The microfluidic reservoirs ensure maximum sealing, avoiding air leakage even when working at high pressure.
Main benefits
Autoclavable
BiocompatibleNo contact with the sample
Long useSuits long term experiment
IncubatorReservoirs can be incubated
Features of our microfluidic reservoirs
Pressurize standard lab vials
The P-CAPs fit standard 1.5 mL, 2 mL (eppendorf), 15 mL and 50 mL (falcon) lab vials.
No wetted material
There is no contact between the metal tube caps and the samples. Only disposable materials are wetted.
Reservoir accessibility
The vials can be agitated while delivering fluids, without decreasing the flow stability.
Free sample access
Easy refill using a syringe or a pump, even during the experiment with the multiple port version (50mL only), to make your cell culture or organ-on-a-chip experiments last longer.
Specifications
OPERATING CONDITIONS
| Working pressure | Up to 7 bar (up to 4 bar for 50 mL versions) |
| Working Temperature | -5°C to 60 °C |
HARDWARE SPECIFICATIONS
| Tubing compatibility | 1/16” and 1/32” OD capillaries |
| Pressure inlet connector | 4mm OD |
| Reservoir size compatibility | 1.5 mL, 2 mL, 15 mL, 50 mL |
MATERIAL
| Cap and ring | Aluminium |
| Seal | NBR |
| Speed fit | Nickel-plated brass |
CHEMICAL COMPATIBILITY
| Gas compatibility | Dry, oil-free gas, air, any non corrosive or non explosive gas |
| Liquid compatibility | Aqueous solvent, oil, organic solent, biological sample |

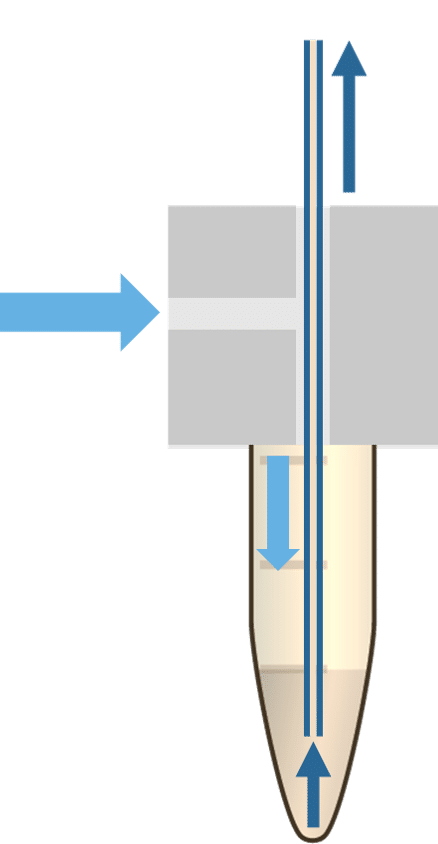

Pressure controllers such as MFCS™ series or LineUp™ series instruments allow for pressurization of vials to handle fluids.
